產品

產品描述

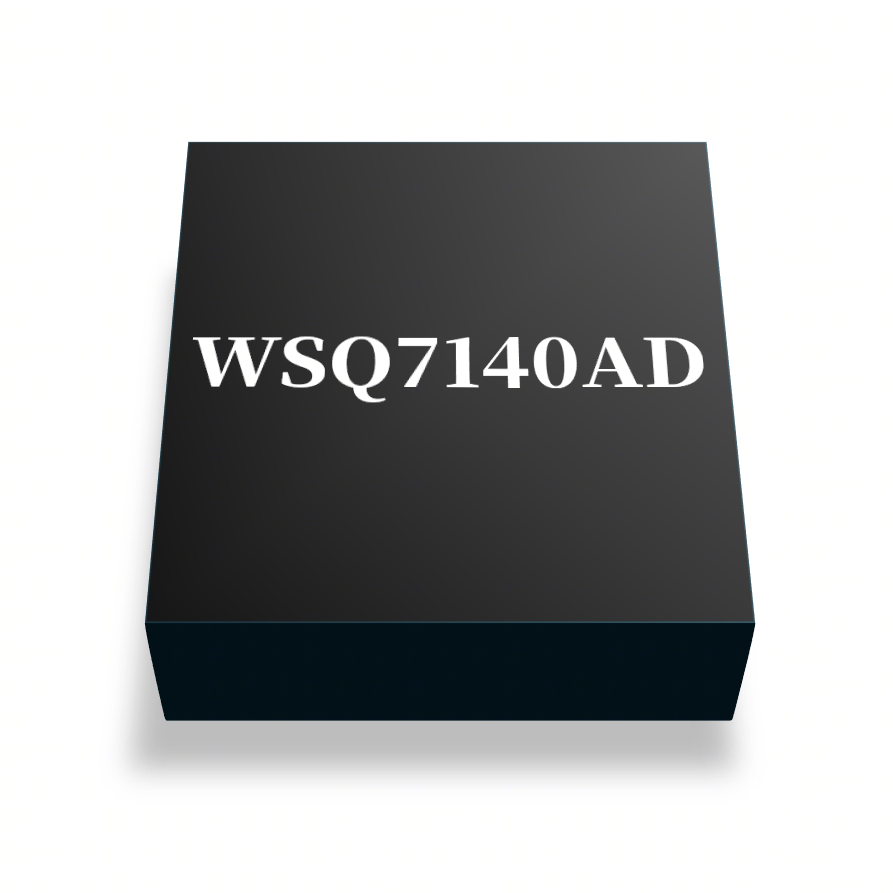

  • WSQ7140AD is quad channel high-side drivers with currentsense analog feedback for automotive applications, the devicesare designed to drive 12 V automotive grounded loads througha 3 V and 5 V

  • WSQ7140AD integrates advanced protective functions such asload current limitation, overload active management by powelimitation and overtemperature shutdown with configurablelatch-off. A Fault pin unlatches the output in case of fault ordisables the latch-off functionality.

  • A dedicated multifunction multiplexed analog output pindelivers sophisticated diagnostic functions including highprecision proportional load current sense, supply voltagefeedback and chip temperature sense, in addition to thedetection of overload and short circuit to ground, short to Vcc and OFF-state open-load.

  • A sense enable pin allows OFF-state diagnosis to be disabled during the module low power mode as well as external senseresistor sharing among similar devices.

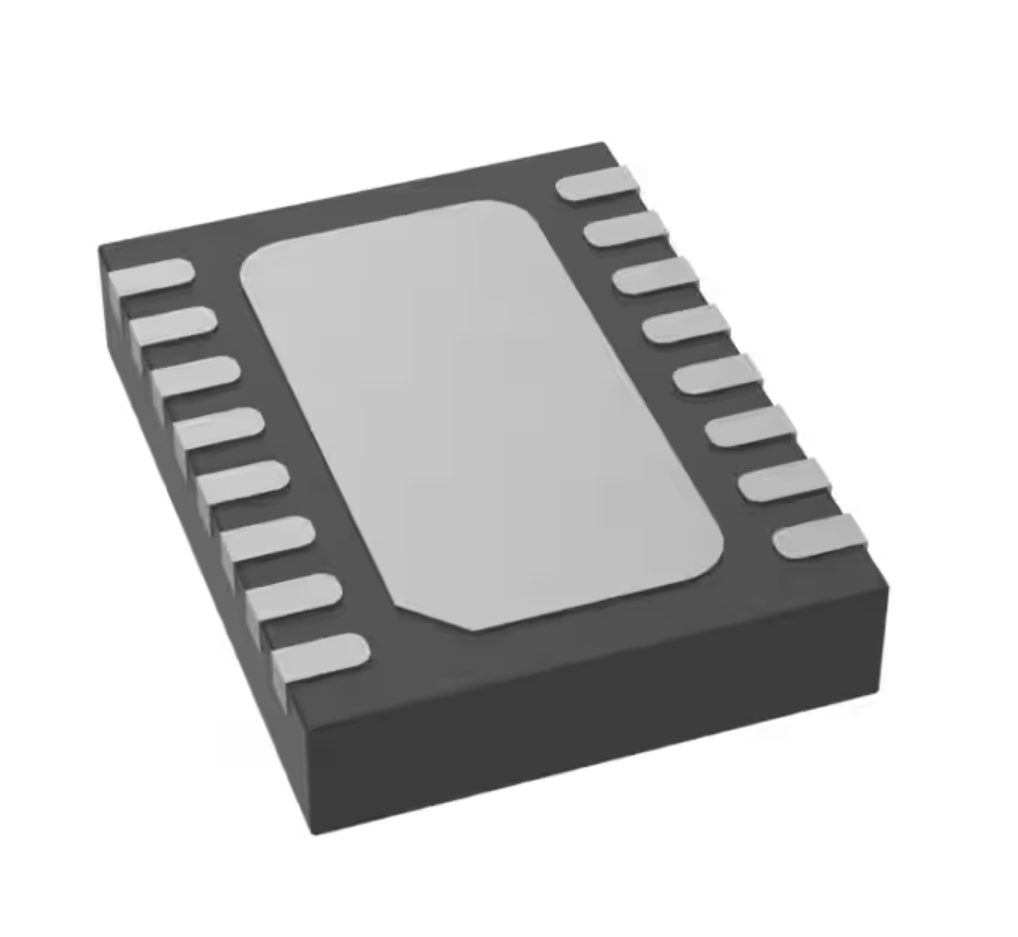

  • WSQ7140AD is available in DFN5x6-16L package.

主要特點


  • Operating voltage range: 4.5V to 28V

  • Load current limitation

  • Output short-circuit protection

  • Standby current <2.0μA

  • On-state resistance Typ=120mQ (per Ch)

  • Thermal shutdown indication

  • OFF-state open-load detection

  • Overvoltage clamp

  • Undervoltage protection

  • Load current with high precision proportional current mirror

  • RoHS compliant and lead free

  • AEC-Q100 qualified


規格書

文檔名稱文檔描述                    下載
WSQ7140AD453KB


WSQ7140AD Datasheet_A0.2_EN.pdf
